Product Details
Standard Protection: Sheets are typically stacked with interleaving protective layers to prevent the color coating from scratching.
Seaworthy Packing: For export or long-distance transit, bundles are secured in wooden crates or heavy-duty plastic wrapping with desiccant packs to prevent "white rust".
Custom Lengths: custom lengths (often up to 10–12 meters) to minimize joints in large-span roofs.

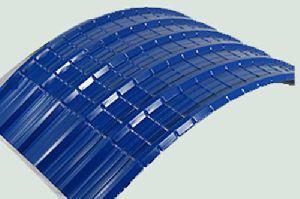

Pre-coated crimped curved sheets are specialized roofing and cladding components made by cold-forming trapezoidal profile sheets into a precise arch or curve using "crimping" indentations. These are widely used in industrial sheds to create seamless transitions for ridges, eaves, and curved roof sections without the need for multiple joints
Technical Specifications (0.5 mm to 1 mm)
· Core Material: Primarily made of Pre-Painted Galvanized Iron (PPGI) or Pre-Painted Galvalume (PPGL).
· Thickness Range: Commonly available in 0.50 mm, 0.60 mm, and up to 1.0 mm for heavy-duty industrial wind-load requirements.
· Curve Radius: Flexible fabrication allows for radii ranging from as tight as 250 mm to over 1000 mm, depending on the building's structural design.
· Surface Finish: Features a high-quality color coating (often 20+ microns) in standard RAL shades like Blue, White, Green, and Brick Red.
Key Benefits
· Leak-Proof Design: The continuous curved profile eliminates horizontal laps and joints, which are common points for water leakage in industrial roofs.
· Enhanced Strength: The crimping process increases the sheet's longitudinal stiffness, allowing it to withstand higher wind and snow loads.
· Aesthetic Versatility: Provides a modern, smooth architectural finish for domes, canopy walkways, and industrial "north light" curves.
· Ease of Installation: Pre-curved sheets fit directly onto the purlins, significantly reducing onsite labor and cutting time
Easy to install, Crimped Curved Sheet provide versatility and creativity that bring new and refreshing design to industrial and domestic buildings. The combination curves and contours in concave and convex shapes with flats and angles can be used to add an aesthetic appeal to the building.
These sheets provides absolute design freedom with significant cost saving in construction.
